24" x 9" Spinjet Pitcher Rinser 600mm // RHPR600-S

All Rhino Coffee Gear Rinsers are Certified by NSF International and conform to the requirements of NSF/ANSI 169 - Special Purpose Food Equipment and Devices.

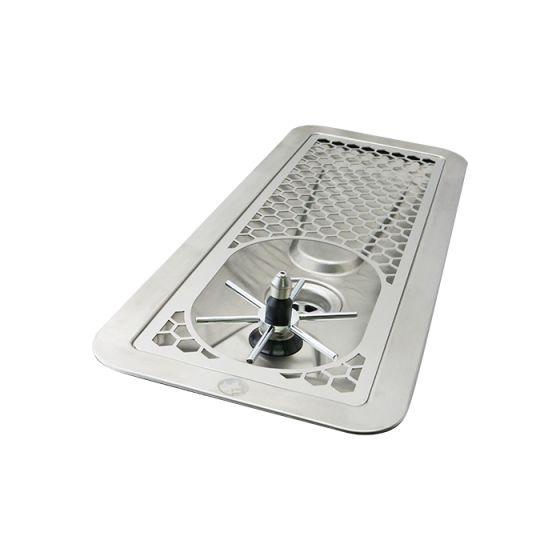

This vessel rinser features a new honeycomb drain tray grid and a new Actuator Star design, which both help to prevent liquid retention on the working surfaces. It also includes a Rhino Spinjet Valve which sprays and spins at the same time for an effective clean. At 600mm in length, the RHPR600-S fits multiple milk pitchers and blenders pitchers comfortably, making it perfect for all busy hospitality environments.

FEATURES:

EFFECTIVE MECHANICAL CLEANING

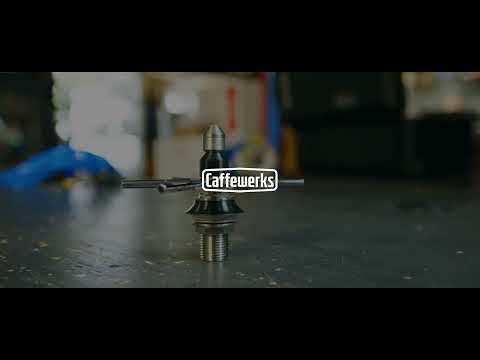

The Spinjet Valve sprays and spins at the same time creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for press type brewers using tea leaves, stubborn coffee grounds, milk and other residues that can often be difficult to clean.

SUPERIOR DRAINAGE
The honeycomb grate design helps increase the open space of the grid, reducing static build-up of liquids and making cleaning easy.
The low profile body is optimally sloped to ensure effective removal of liquids, reducing common odors caused from static waste.
A large drain outlet and wide grate-free opening near the drain creates a convenient location to quickly discard larger volumes of liquid.

LARGER VESSEL OPTIONS
The Actuator Star diameter allows both small and larger vessels to be cleaned easily.

An ideal add-on for blender jugs and other larger vessels is the Blender Adapter Kit. This kit includes an extension rod and a larger actuator to suit plungers,
milkshake cups, and popular blender jugs such as Blendtec® and Vitamix®.

SPECIFICATIONS

- Dimensions (approx): 238mm (W) x 600mm (L) 85mm (D) approx. (9.38 x 23.6 x 3.35 in) (Depth from drain elbow to top of bench.)
- Materials: Stainless Steel
- Drain Hose: 25mm/1Inch (not included)

Depth Requirements:
The Rhino rinsers are 1.57" deep, however, this is without fittings. We recommend at least 6" of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.

Click here to view the Spinjet parts diagram.

*PLEASE NOTE*
- PLV: It is recommended that a Pressure Limiting Valve (PLV) is used when installing on a mains water line.
- Do not cut out bench top surfaces prior to receiving your rinser: Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical vessel rinser on-hand prior to cutting into bench top surfaces. Bombora Supplies does not take responsibility for errors concerning installation and provides the sizes and dimensions as a layout guide only.
